China World Trade Center 3

Location: Beijing

Country: China

Client: Shangri-la Hotel Group

Architect: Skidmore, Owings & Merrill (SOM) / Wong Tung & Partners Ltd

Services Provided: Tall building façade engineering, Glass wall design and engineering, Stone cladding design and engineering, Building maintenance unit design

Standing at 330 metres, the China World Trade Center consists of a hotel and office tower and a six-storey retail podium. It is currently the tallest building in Beijing, rising 80 floors above ground. 112,000 square metres total façade area which is equivalent to 16 standard football fields 83 stories (including basement) 285,000 square metres floor area 50+ placed end-to-end external glass fins would stretch over 50 kilometres in length

The tower façade features a thermallybroken, unitised curtain wall system with low emissivity insulated glazed units, shaded by full height external vertical glass fins. Because the tower tapers in as it rises, the curtain wall undulates on alternating floors to create a micro-texture to the overall façade.

The external glass fins cantilever 600 millimetres from the glazed façade, providing shading and housing LED lighting strips along the outer edges fornight time illumination.

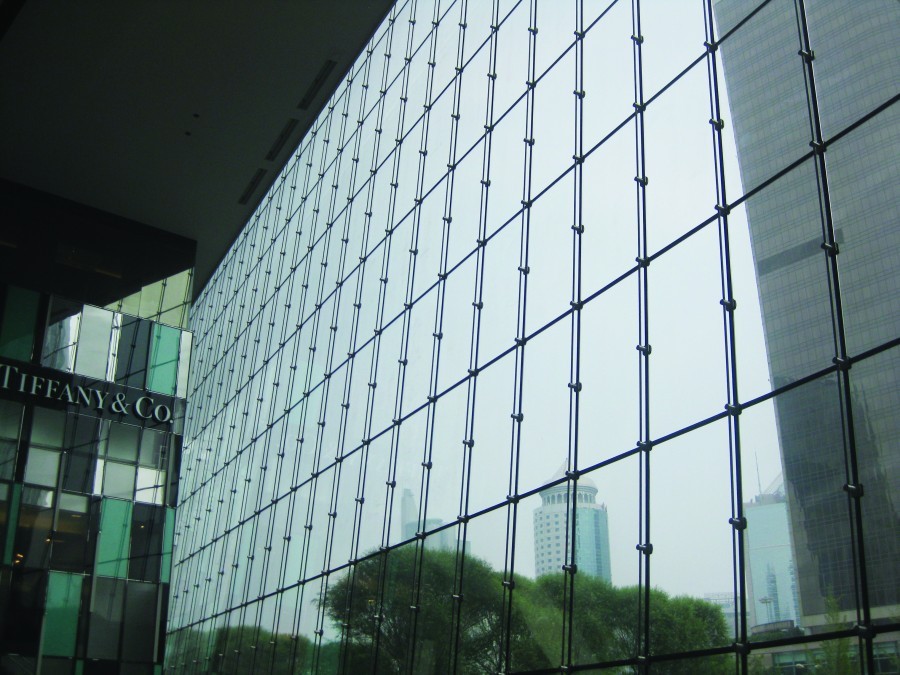

The retail podium’s signature façade is 22 metres high and 100 metres wide, composed of a highly transparent, yet energy efficient retail glass wall, utilising low iron, low emissivity insulated glass units. These are supported only by stainless steel cables running from the ground level to the roof. This structure is the first of its kind in Beijing.
